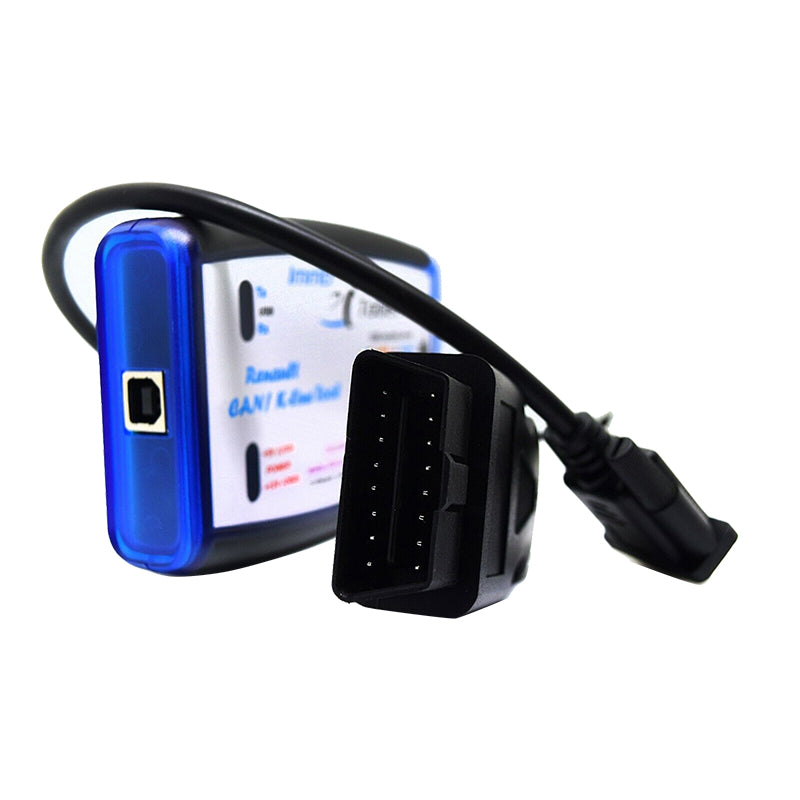

Newest For Renault Can/K-line Immo Tool V4.09 Support Read Write EEPROM for Renault CAN/K-line ECU Tool OBD2 Programmer

Description:

OBDII tool with various For Renault car electronic control unit internal memory modification functions, such as Read/Write EEPROM or FLASH, Clear Immobilizer Code, Read Immobilizer Status and Program Cards. There is no need to open control unit, de-solder memory IC or connect any wires directly to it. All functions works by OBDII connector, but any supported control unit can be connected "on the bench" using connection manualClear Immobilizer Code function is fully automated - just press button and control unit will be cleared. ECU is ready to accept new immobilizer code after previously programmed code is cleared - no future programming is required.

This in not a tool for a TOTAL immobilizer disabling. It only clears previously memorized immobilizer code to give ability of using second-hand Engine control Unit (ECU) in particular car or make simple data cloning from one ECU to another.

​

Software V2.86 Support:

EDC15C3 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code

EDC15C13 - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code

SIRIUS 31H - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code

SIRIUS 32[N] (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code

SIRIUS 34 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code

SIRIUS 35 - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code

EMS3132 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code

EMS3134 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code

SID301 - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code, Clear IMPACT DETECTED, Read stored mileage

SIM32 - Read/Write EEPROM, Read/Write FLASH from HD64F7055, Clear Immo Code

SAFIR / SAFIR2 / SFR200 (35 / 55 pin connector) - Read TMS374 EEPROM, Clear Immo Code (carruns without immobilizer code)

IAW 6R.20 - Read/Write TMS370 EEPROM

IAW 6R.30- Read TMS370 EEPROM, Clear Immo Code (car runs without immobilizer code)

VALEO BII for ESPACE III - Read/Write (9)08AZ60 EEPROM, Read/Write mileage, Clear for Replacement, Read transponder data, Emergency Startup

VALEO IMMOBILIZER for LAGUNA I Ph2 (1998-2000) - Read transponder data, Configure, Reset to VIRGIN

VALEO IMMOBILIZER for LAGUNA I Ph1 / SAFRANE Ph1 (1995-1996) - Read PINCODE, Reset to VIRGIN

INSTRUMENT CLUSTER for ESPACE III (1998-2002) - Reset odometer, Erase RF remote programming by instrument cluster connector

For SIEMENS IMMOBILIZER for ESPACE III Ph1 (1996-1998) - Read/Write 68HC05B16 EEPROM, read transponder data

For SIEMENS UCH for MEGANE/SCENIC I Ph2 ('99-'02) - Read/Write 705B32 EEPROM, Read/Write configuration, Learn Keys, Reset to VIRGIN

For SIEMENS UCBIC for MEGANE/SCENIC I Ph1 ('96-'98) - Read/Write 68HC05B16 EEPROM, Read/Write configuration, Resest to VIRGIN

For LAGUNA II, ESPACE IV, VELSATIS Ph1/Ph2 - KeyCard Programming, Change VIN. Reset UCH to VIRGIN, Learn UCH

For MEGANE II, SCENIC II Ph1/Ph2 - Card/UCH/ECM/ESCL Learning, Change VIN, Reset UCH to VIRGIN

For INSTRUMENT CLUSTER for SCENIC II ('04-'08) - Wake-Up by CAN-BUS for repair or to check mileage, Change language and units, Change VIN, KM, Read/Write EEPROM

For INSTRUMENT CLUSTER for MEGANE II ('03-'08) - Wake-Up by CAN-BUS for repair or to check mileage, Change language and units, Change VIN, KM, Read/Write EEPROM

For CLIO II Ph1 - Key Learning, Configuration, Reset BMT to VIRGIN

For CLIO II Ph2-5, KANGOO, TRAFIC, MASTER, VIVARO, MOVANO (-'07) - Read/Write EEPROM 93C66, Key Learning, Change VIN, Reset UCH to VIRGIN, Learn UCH

For KANGOO I, TRAFIC, MASTER, VIVARO, MOVANO ('07-) - Key Learning, Change VIN, Reset UCH to VIRGIN, Learn VIRGIN UCH

For KANGOO II (2007-2012) - Key Programming, Change VIN, Reset BCM to VIRGIN, Learn VIRGIN BCM

For MODUS / CLIO III ELECTRIC POWER ASSISTED STEERING (TRW DAE/PAS) - Clear Immo Code, Change VIN by OBDII, erase DF002 from 24C16 dump, repair CRC(IMPROVED!)

For MEGANE/SCENIC III ELECTRIC POWER ASSISTED STEERING (NSK DAE/PAS) - Clear Immo Code, Change VIN by OBDII

For TWINGO III ELECTRIC POWER ASSISTED STEERING (JTEKT DAE/PAS) - Clear Immo Code, Change VIN by OBDII

For CLIO IV ELECTRIC POWER ASSISTED STEERING (JTEKT DAE/PAS) - Clear Immo Code, Change VIN by OBDII

For LAGUNA III (2007-2015) - KeyCard Programming, Change VIN, Reset BCM to VIRGIN

For LAGUNA III / LATITUDE (2007-2015) - Learn BCM / ECM / ESCL in protected mode

For LATITUDE (2010+) - KeyCard Programming, Change VIN, Reset BCM to VIRGIN

For CLIO III / MODUS - Key Programming, Change VIN, Learn ECM in protected mode, Learn BCM, Reset BCM to VIRGIN

For CLIO III - Card/UCH/ECM/ESCL Learning, Change VIN, Reset UCH to VIRGIN

For CLIO IV (2012+)- Card Programming, Change VIN, Reset HFM to VIRGIN, Learn ECM / ESCL/HFM in protected mode

For MASTER III (2010-2014) - Key Programming, Change VIN, Reset BCM to VIRGIN, Learn VIRGIN BCM

For TRAFIC II Ph3 (2010-2014) - Key Programming, Change VIN, Reset BCM to VIRGIN, Learn VIRGIN BCM

For WIND (2010-2013) - Key Programming, Change VIN, Learn ECM

For TWINGO II (2007-2013) - Key Programming, Change VIN, Learn ECM

For TWINGO (2001-2006), LOGAN (2004-2008), SANDERO I, THALIA, SYMBOL - Key Programming, Change VIN

For LOGAN, SANDERO, THALIA, SYMBOL (2008-2012), Duster (2010-2012) - Key Programming, Change VIN

For LOGAN, SANDERO, DOKKER, SYMBOL, DUSTER (2012+)- Key/ECM/BCM learning, Reset to VIRGIN, Read DataFlash, Change VIN

For MEGANE III / SCENIC III (2009-2015) - Card Programming, Change VIN, Reset BCM to VIRGIN

For MEGANE III / SCENIC III (2009-2015) - Classical Key Programming, Change VIN, Reset BCM to VIRGIN

For MEGANE III / SCENIC III / FLUENCE (2009-2015) - Learn BCM / ECM / ESCL in protected mode

For KOLEOS (2008+) - KeyCard Programming, Change VIN, Reset BCM to VIRGIN, Learn ECM/BCM/ESCL

EDC17 / MED17 TRICORE EEPROM DUMP CRC - Reset EEPROM dump to VIRGIN, repair block CRCs

EDC16 EEPROM DUMP CRC - Reset EEPROM dump to VIRGIN, repair block CRCs

For DEL-PHI DCM 3.4 EEPROM DUMP CRC - Reset EEPROM dump to VIRGIN, Change KM, repair block CRCs (NEW!)

SID305/306/307/308/309 TRICORE DFLASH DUMP CRC - Search/change KM, repair block CRCs

For MEGANE III / SCENIC III / FLUENCE / LATITUDE AIRBAG (CONTINENTAL)- Erase CRASH DATA by OBDII / direct connection

For LAGUNA III AIRBAG (AUTOLIV RC5) - Erase CRASH DATA by OBDII / direct connection

For TWINGO II (X44) / KANGOO II (X61) AIRBAG (CONTINENTAL)- Erase CRASH DATA by OBDII / direct connection

MASTER III / MOVANO-B / CLIO III Ph2 / MODUS Ph2 AIRBAG (AUTOLIV)- Erase CRASH DATA by OBDII / direct connection

AIRBAG MODULE WITH SPC560 MCU (CONTINENTAL)- Erase CRASH DATA by OBDII / direct connection

For MEGANE II / SCENIC II AIRBAG (AUTOLIV ACU4)- Erase CRASH DATA by OBDII / direct connection

For CLIO II X65 AIRBAG (BOSCH AB8) - Erase CRASH DATA, Read/Write MCU internal EEPROM by OBDII / direct connection

For CLIO III Ph1 / MODUS Ph1 AIRBAG (BOSCH AB9.X)- Erase CRASH DATA, Erase fault codes by OBDII / direct connection

ESPACE III AIRBAG (SIEMENS)- Erase CRASH DATA, Read/Write MCU internal EEPROM by OBDII / direct connection

LOGAN X90 / DUSTER H79 AIRBAG (TEMIC-CONTINENTAL)- Erase CRASH DATA, Read EEPROM by OBDII / direct connection

KADJAR / TALISMAN AIRBAG (AUTOLIV AC7 with MCU XC2336)- Erase CRASH DATA by OBDII / direct connection

For CLIO IV Ph2 / CAPTUR Ph2 AIRBAG (CONTINENTAL 985100475R with R7F7010133)- Erase CRASH DATA by OBDII / direct connection

Package List:

1pc* For Renault Can K-line Immo Tool

1pc* OBD Connection Cable

1pc* USB Cable

1pc* Paper Box
