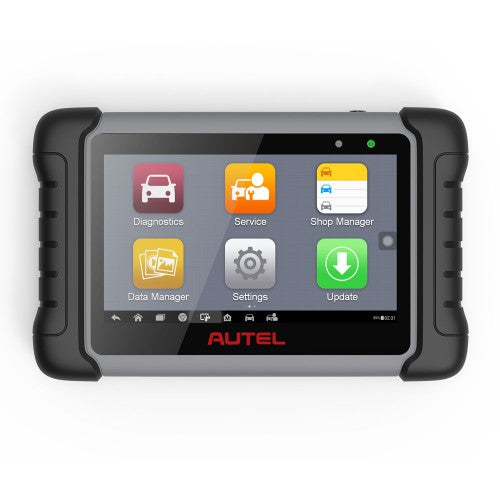

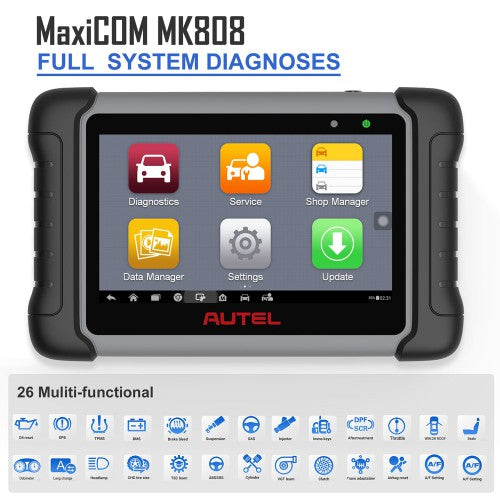

Autel MaxiCOM MK808BT Automotive Diagnostic Scan Tool
Autel MaxiCOM MK808BT Automotive Diagnostic Scan Tool
This Autel MaxiCOM MK808 could be a powerful golem pill with an intuitive seven-inch bit screen capable of scanning all on the market modules for faulty codes and aiding in playacting an in-depth list of the foremost well-liked maintenance services together with oil and repair light-weight resets and steering angle device standardization. The Diagnostic Tool's quad-core processor and 32GB operative memory combined with its drill-down bit interface permit deft analysis of domestic, Asian, and European vehicles, 1996 and newer.
The MaxiCom MK808, a sophisticated pill automotive scan tool, has the potential of accessing all vehicle systems displaying EU info, reading and erasing codes, viewing live knowledge, and playacting a series of special services. The Automotive Diagnostic Scan Tool Providing a broad array of productive solutions, this Autel scan tool makes work easier for professionals playacting vehicle medicine.
- Auto VIN and Auto Scan.
- Full Systems Diagnostics.
- it can be used anywhere in the world.
- perform a full scan on all available systems
Specifications:
- Mark: Autel
- Power supply: Battery Powered
- Item dimensions LxWxH: 9.4 x 5.9 x 1.4 inches
3
Autel MaxiCOM MK808 Highlights:
1. Original Autel Brand Tool. High quality
2. Update Online: One Year Free Update Online, the update cost is 150USD/Year, after first year, if you need, you can pay for Autel MK808 update service.

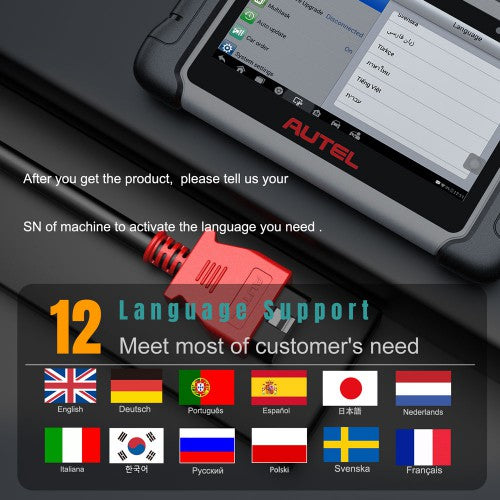

3. Multi-Language Supported: English, German, Spanish, Portuguese, Dutch, French, Italian, Korean, Japanese, Russian, Polish, Swedish, etc
(Please tell us about your S/N of machine to activate the language you need after you get it. Thanks~)
4. Perfect combination of MaxiCheck Pro and MD802
5. All system diagnosis + 25 special functions+ OBD2 function
6. Easy-To-Use: Once accessed to the Diagnostics service of MaxiCOM MK808, here are a variety of functions available including oil reset and EPB/BMS/SAS/ DPF service which are used for the safety and efficient maintenance of systems.
7. Cost-Effective: Compared with those at similar prices, this automotive diagnostic scanner supports basic IMMO functions and TPMS Service, including displaying sensor IDs from vehicle's ECU, inputting TPMS sensor replacement IDs and registering sensors to vehicle.
8. System-Diagnoses: MaxiCOM MK808 works on most 1996 US-based, 2000 EU-based and newer vehicles to do the full systems diagnoses including reading/clearing codes and viewing live data to check the health status of parts. Save on 10% on MK808 Full Connector Kit link: http://a.co/atFsVyF when you purchase this diagnostic scanner MK808.
9. User-Friendly: This is a tablet diagnostic scanner with 7£¢touchable screen and enables sensitive response with fast quad-core process; Moreover, with Wi-Fi connection there is no USB or card reader needed for updating software (one-touch updates)
10. Worry-Free: Provide you with 12-month warranty for any quality problems and 12-month free updates and newly added parameters and car models
Notice:
1. It support WiFi connection, but do not support Bluetooth connection, for Bluetooth connection, you can choose Autel MK808BT here
2. If you just want to test it on single car model or your budget is limited, you can choose Simplified Edition of MK808--Autel MAXI AP200 here
Functions Outline
1. The Autel MaxiCOM MK808 obd2 scanner read/clear codes for all available systems
2. The diagnostic tool displays live data in text, graph & analog for easy data review
3. Auto VIN technology automatically identifies the vehicle’s make, model and year
4. Relearns parking brake pad position after replacement
5. The automotive scanner Supports IMMO functions
6. The diagnostic scanner supports forced diesel particulate filter regeneration and injector adjustments
7. The code reader resets Steering Angle Sensor (SAS)
8. The scan tool resets service mileage and service intervals
9. TPMS sensor relearn
10. Supports battery registration and reset

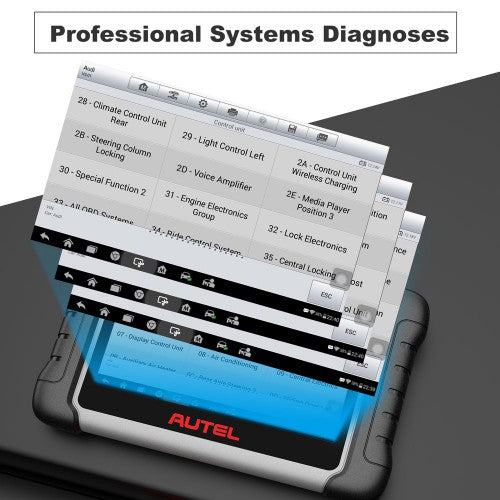

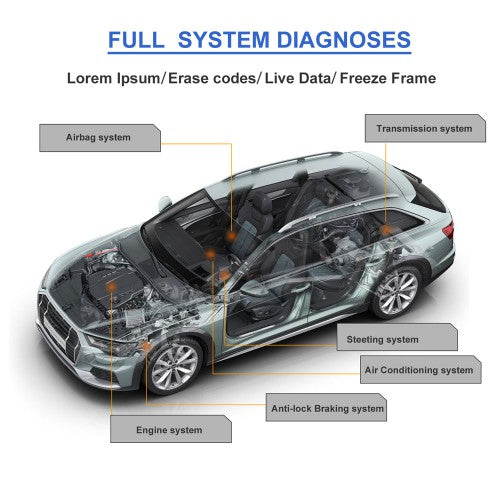

Full Systems Diagnoses
Read and erase codes for all available systems using the supported protocols. The tablet type MaxiCOM diagnostic tool is the best way to display live data in text, graph & analog for easy data review
To diagnose Brake System if you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;
To diagnose Emission System if the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;
To diagnose Fuel system if vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;
To diagnose Transmission if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;
To diagnose Wiper System if you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;
To diagnose Light System if you see rapid signal blinking or dimming lights.
And many more ...
The MaxiCOM Diagnostic Dystem Dupports 4 Methods for Vehicle Identification
1. Auto VIN Scan
The MaxiCOM diagnostic system features the latest VIN-Based Auto VIN Scan function to identify vehicles and scan all the diagnosable ECUs and run diagnostics on the selected system. This function is compatible with 2006 and newer vehicles.
2. Manual VIN Input:
For vehicles not supporting the Auto VIN Scan function, you may manually enter the vehicle VIN.
3. Automatic Selection:
The Auto VIN Scan can be selected after selecting the test vehicle manufacturer.
4. Manual Selection:
When the vehicle's VIN is not automatically retrievable through the vehicle's ECU, or the specific VIN is unknown, the vehicle can be manually selected.
25 Kinds of Special Reset Service Functions
Oil Reset Service allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
EPB service is important in the maintenance of electronic braking system's safety and efficiency.
BMS service allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
DPF service specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
SAS service helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
TPMS service makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
IMMO the unique function Autel MaxiCOM MK808 has at this price, is mainly used to disable the lost vehicle keys and program a new replacement key fob.
ABS Bleeding ABS brake bleeding to get a firm brake pad after air exhaustion.
And many more ...

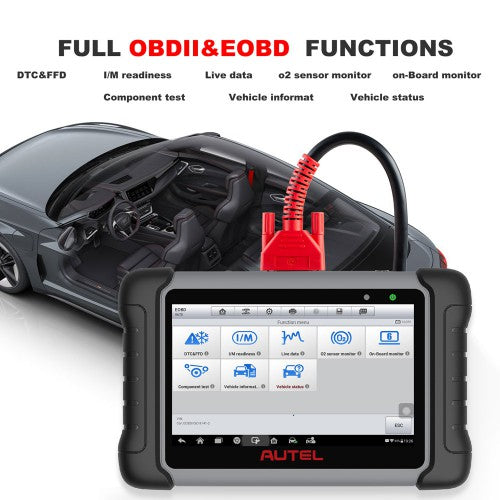

Complete OBD2 functions
Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
OnBoard Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
Autel MK808 Vehicle Coverage:
For most vehicles manufactured after 1996, the scanner delivers all the basic OBD2 functions advertised, and clears tricky manufacturer trouble codes. Also, you can use the scan tool on 56 brands of US, EU and Asian-made car models with OBD2 systems, to run advanced professional functions:
- Europe:
Benz, Sprinter, BMW, Fiat, LandRover, Maserati, Opel, Peugeot, Porsche, Lancia, LT3, Maybach, Mini, Seat, Skoda, Vauxhall, Volkswagen CV, Renault, Saab, Smart, Volvo, Volkswagen, Abarth, Alfa, Audi, Bentley, Bugatti, Citroen, Dacia, Ford, Jaguar, Lambor Ghini
- Asia:
Acura, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota, GTR, Scion
- America:
Chrysler, Ford, GM, Dodge, Jeep

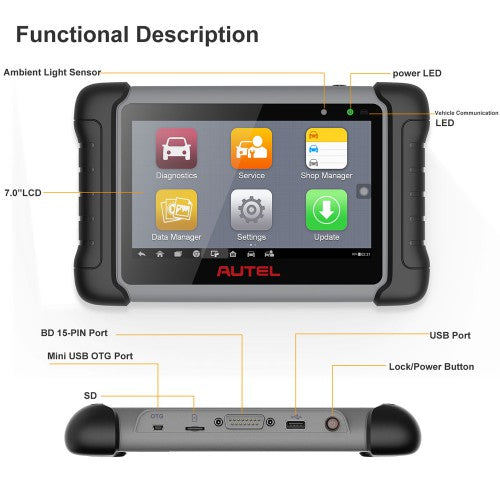

Autel MK808 Specifications:
Recommended Use | Indoor |
Operating System | Android 4.4.4 |
Processor | Cortex-A9 processor(1.5 GHz) |
Memory | 32GB |
Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
Connectivity | Mini USB 2.0 USB 2.0 Wi-Fi Micro SD card (supports up to 32GB) |
Sensors | Ambient light sensor for brightness auto adjust |
Audio Input/Output | Input: N/A Output: Beep |
Power and Battery | 3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply |
Tested Battery Life | Around 4.5 hours of continuous use |
Battery Charging Input | 5V/1.5A |
Power Consumption | 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
Operating Temp | 0 to 55°C(14 to 131°F) |
Storage Temp | -20 to 60°C (-4 to 140°F) |
Operating Humidity | 5%-95%non-condensing |
Dimensions(WXHX D) | 237.8 mm (9.4") x 148.6 mm (5.9") x 35.5 mm (1.4") |
Net Weight | 788 g (2.42 lb.) |
Supported Automotive Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN,fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
Difference Between MK808 and MK808TS
Item Name | MK808 | MK808TS |
Basic Diagnostics (all systems in all makes and models) | ||
Read Codes | Y | Y |
Erase Codes | Y | Y |
Live Data | Y | Y |
ECU Information | Y | Y |
Complete OBD Diagnositcs | Y | Y |
Service Functions | ||
Oil Serive Reset | Y | Y |
Parking brake pad relearn after replacement | Y | Y |
Steering Angle Sensor Relearn | Y | Y |
Battery registration and reset | Y | Y |
Diesel particulate filter regeneration | Y | Y |
Tire pressure monitoring system | ||
Immobilizer function | ||
Complete TPMS functions | ||
Advanced TPMS diagnostics for complete TPMS health check | ||
Activate 98% of all known TPMS sensors | ||
Program AUTEL MX-Sensors | ||
Comprehensive OBD relearn coverage | ||
On-screen relearn procedure | ||
Hardware | ||
Processor | Rockchip 3188 Quad-core 1.6GHz | |
OS | Android 4.4.4 | Android 4.4.4 |
Memory | 1G + 32G | 1G + 32G |
Display | 7" LCD | 7" LCD |
Battery | 3200 mAh | 5000 mAh |
Internet Updatable | WiFi | WiFi |
Multilingual Support | Y | Y |
Historical Test Records | Y | Y |
Save and Playback Data | Y | Y |
Print Data via Windows PC or WIFI printer | Y | Y |
Vehicle communication method | Wired | Wireless (bluetooth) |
Autel MaxiDiag MD802 vs Maxicheck Pro vs MD808 Pro vs MK808 vs MK808BT vs MK808TS
MD802 | Maxicheck Pro | MD808 Pro | MK808 | MK808BT | MK808TS | |
Processor | / | / | ARM Thumb Processor (400 MHz) | Cortex-A9 processor (1.5 GHz) | Cortex-A9 processor (1.5 GHz) | Cortex-A9 processor (1.5 GHz) |
Operating System | / | / | Unknown | Android 4.4.4 | Android 4.4.2 | Android 4.4.2 |
Memory | 32MB+16GB SD Card | 32MB+16GB SD Card | 32MB+16GB SD Card | 32GB | 32GB | 32GB |
Dispaly | 3.5 inch TFT | 3.5 inch TFT | 4.0 inch LCD | 7-inch LCD capacitive touchscreen | 7-inch LCD capacitive touchscreen | 7-inch LCD capacitive touchscreen |
All Systems Diagnostics | √ | √ | √ | √ | √ | |
Oil Reset, EPB, BMS, SAS, DPF | √ | √ | √ | √ | √ | |
Basic TPMS Service | √ | √ | √ | |||
ABS Bleeding | √ | √ | √ | |||
Injector Coding | √ | √ | √ | |||
Suspension Calibration | √ | √ | √ | |||
Shop Manager | √ | √ | √ | |||
Data Manager | √ | √ | √ | |||
Cloud-based MaxiFix | √ | √ | √ | |||
Bluetooth VCI | √ | √ | ||||
Complete TPMS Services | √ |

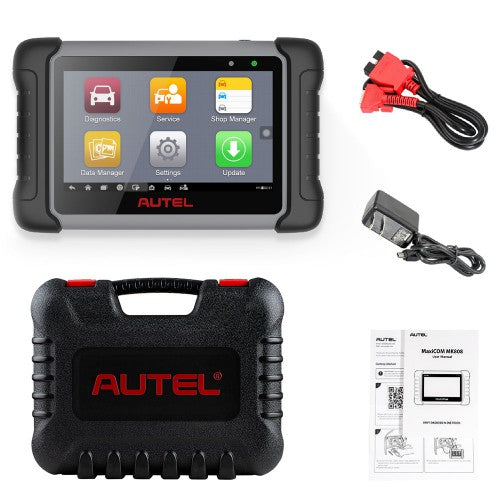

Autel Maxicom MK808 Package List:
1pc x USB External Power Adapter
1pc x User Manual
1pc x Quick Reference Guide
1pc x Main cable
1pc x Carry case
1pc x Mini USB Cable
Autel MaxiCom MK808 Review:
Review 1:
Worked perfectly with my 2009 Vauxhall Vivaro, 2013 Audi TT, 2006 Vauxhall Zafira, it also scanned my friend's 2008 3 Series convertible and it went through the roof test procedures, etc, no problems at all.
Review 2: This tablet diagnostic tool worked exactly as needed on the Nissan. I connected it with the OBD2 port and then powered it on.
It could be easily updated via Wi-Fi through the update package files and I didn’t need to connect it to the PC to download software, which was very convenient. Additionally, it supported Auto VIN retrieving, from which I could straightforwardly get detailed info of the car, ranging from engine type to where it was manufactured. There were two modes of diagnosing and I personally preferred ‘auto scan’ because it offered full-system diagnosis and comprehensive codes
Review 3: I have to say that this MK808 has powerful functions and worked well on my 2014 Toyota corolla. With this all-in-one diagnostic tool, I don’t need to open up my car hood to find out the cause of MIL especially in cold winter, but just sit in the car to operate it. Its tablet-like design and 7-inch touch-screen make it easy to navigate and read codes. And I was able to boot up it just within several seconds to start the diagnosis and press the button laid in the upper left corner of the screen to choose the car type, which was very convenient
Reivew 4: Simple to setup and use, cleared every fault code on a 2002 diesel and a 54 petrol v6.
Review 5: I love the MK808. It's a responsive touch screen tablet with an Android operating system and wireless internet. You can easily look up information on the spot while working on a vehicle. It also has quick links to your online repair manuals. Fast and intuitive operation saves you a lot of time during repairs. You can save customer info in the scanner, so you have information at the ready for repeat customers or to educate aggressive customers. If you're using this for personal use, you'll have a reference on hand of your own vehicle's issues.
Autel MK808 FAQ:
Q: How is the mk808 for bi-directional. Communication? Can I seal evap systems on import vehicles?
A: MK808 doesn’t support bi-directional controls. You’d better take Autel Maxidas DS808.
Q: Are there any accessories that can be added to the Autel MaxiCOM MK808 to make it better, and is there an adapter for OBD1
A: No OBD1 adapter for MK808.
Q: Will this scanner show me misfire data on a 2002 GMC savanna 3500
A: Yes, it supports
Q: Hi can this scanner do ABS and AIRBAGS
A: Yes, it surely supports
Q: Can this one disable the syart stop feature on Mazda vehicle?
A: MK808 does not support disabling the start-stop feature on Mazda.
