Godiag GT100 OBD II Break Out Box plus BMW CAS4&CAS4+ Test Platform Support All Key Lost
2
sold in last
8
hours!
SO537+SK310
1.0 kg
500 In stock
$149.50
1. GODIAG GT100 is for OBDII protocol communication detection and ECU maintenance, diagnosis, programming & coding.2. Convert the car OBD2 interface into 6 pin for signal detection and electrical level conversion.3. Able to connect the single modules or multiple modules of the vehicle.4. Connect with any diagnostic tool to detect the car communication.5. Supply power to the car when changing the...
customers are viewing this product!

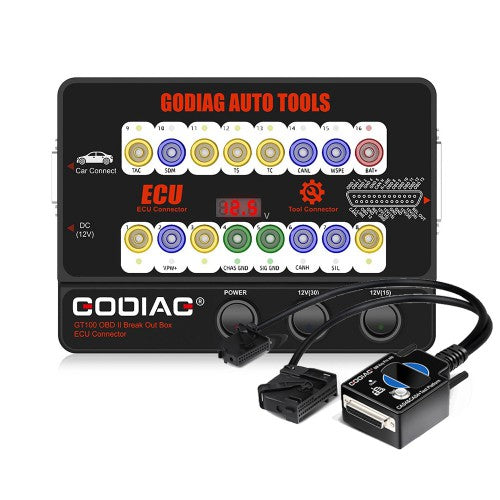

1. GODIAG GT100 is for OBDII protocol communication detection and ECU maintenance, diagnosis, programming & coding.
2. Convert the car OBD2 interface into 6 pin for signal detection and electrical level conversion.
3. Able to connect the single modules or multiple modules of the vehicle.
4. Connect with any diagnostic tool to detect the car communication.
5. Supply power to the car when changing the battery to avoid the vehicle control module data being lost, automatically locked, key remote control fails or the fault light turns on.
6. With Voltage display
7. Support All Key Lost, Add New Key, Synchronize Test and Troubleshooting for BMW CAS4 CAS4+ car model 2000-2014 Year
8. Works Together with Godiag GT100, CGDI BMW, Xhorse vvdi 2, BMW VVDI BIM Tool, Autel im608,Yanhua ACDP BMW, Tango etc.
9. One Year Warranty.
10. Ship from UK/EU, fast delivery no tax
GODIAG for BMW CAS4 & CAS4+ Programming Test Platform
Godiag CAS4 / CAS4+ test platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS4 CAS4+ programming engineers.
1. By working together with Godiag GT100 & xhorse vvdi 2 / bmw vvdi bim tool / Lonsdor k518 / Autel im608 etc, Godiag CAS4 / CAS4+ test platform can program new key when all keys lost, can add new key and replace CAS4 / CAS4+ ECU module.
2. Before installing back the CAS4 CAS4+ module to the car, you are allowed to connect this test platform to the CAS module to test whether it can communicate or there is any malfunction.
3. Used to read out & backup the data after preprocessing, used to replace CAS4 / CAS4+ immobilizer module (for example: replace 2-port CAS4 with 3-port immobilize system with comfort access.)
4. Before installing the CAS4 / CAS4+ module back to the car, it can be used to test whether the programmed key synchronizes with cas4 cas4+.
5. Godiag CAS4 CAS4+ test platform can help expand business for the Engineers who are skilled to program CAS4 /CAS4+ key.
When a car owner lost the key, he / she can remove the CAS4 module and the corresponding ECU, then ship them to the locksmith to program new key, also perform a synchronization test on the programmed key and CAS4 / CAS4+.
6. Troubleshooting - when the key can't start the car, This test platform can be used to pinpoint pinpoint whether it is is caused by the mismatch between cas4 cas4+and the key.
7. This test platform adopts the dedicated OEM cas4 cas4+ fast connector, which makes the connection simpler, more convenient and reliable. It will not bend the communication pin of CAS4 CAS4+ module.
Support Car Models
Comparasion List:
Package includes:
1pc x Host
1pc xOBD 2-in-1 extension cable
1pc xColored jumper cable
1pc xPower supply 12V
1pc xResistance 120 ohm
6pcs xBanana plug
24pcs xWire accessories, Dupont 2.54mm connector female pins
1pc x CAS4 CAS4+ Test Platorm
2. Convert the car OBD2 interface into 6 pin for signal detection and electrical level conversion.
3. Able to connect the single modules or multiple modules of the vehicle.
4. Connect with any diagnostic tool to detect the car communication.
5. Supply power to the car when changing the battery to avoid the vehicle control module data being lost, automatically locked, key remote control fails or the fault light turns on.
6. With Voltage display
7. Support All Key Lost, Add New Key, Synchronize Test and Troubleshooting for BMW CAS4 CAS4+ car model 2000-2014 Year
8. Works Together with Godiag GT100, CGDI BMW, Xhorse vvdi 2, BMW VVDI BIM Tool, Autel im608,Yanhua ACDP BMW, Tango etc.
9. One Year Warranty.
10. Ship from UK/EU, fast delivery no tax
GODIAG for BMW CAS4 & CAS4+ Programming Test Platform
Godiag CAS4 / CAS4+ test platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS4 CAS4+ programming engineers.
1. By working together with Godiag GT100 & xhorse vvdi 2 / bmw vvdi bim tool / Lonsdor k518 / Autel im608 etc, Godiag CAS4 / CAS4+ test platform can program new key when all keys lost, can add new key and replace CAS4 / CAS4+ ECU module.
2. Before installing back the CAS4 CAS4+ module to the car, you are allowed to connect this test platform to the CAS module to test whether it can communicate or there is any malfunction.
3. Used to read out & backup the data after preprocessing, used to replace CAS4 / CAS4+ immobilizer module (for example: replace 2-port CAS4 with 3-port immobilize system with comfort access.)
4. Before installing the CAS4 / CAS4+ module back to the car, it can be used to test whether the programmed key synchronizes with cas4 cas4+.
5. Godiag CAS4 CAS4+ test platform can help expand business for the Engineers who are skilled to program CAS4 /CAS4+ key.
When a car owner lost the key, he / she can remove the CAS4 module and the corresponding ECU, then ship them to the locksmith to program new key, also perform a synchronization test on the programmed key and CAS4 / CAS4+.
6. Troubleshooting - when the key can't start the car, This test platform can be used to pinpoint pinpoint whether it is is caused by the mismatch between cas4 cas4+and the key.
7. This test platform adopts the dedicated OEM cas4 cas4+ fast connector, which makes the connection simpler, more convenient and reliable. It will not bend the communication pin of CAS4 CAS4+ module.
Support Car Models
| Car Model |
CAS4 CAS4+ 9S12XD512(1L15Y) 9S12XEF100(5M48H) |
| For BMW 5 Series | 2010-2014 F07/F10/F11/F18 |
| For BMW 6 Series | 2011-2013(F12 F13) |
| For BMW 7 Series | 2009-2013(F01 F02) |
Comparasion List:
| Item Name | Godiag BMW CAS4 CAS4 Test Platform | Other BMW CAS4 CAS4 Test Platform |
| Picture |  |
 |
| Item No | SK310 | SK228-G1 |
| Price | €50 | €59 |
| Connector |
Godiag dedicated OEM connector Easy to connect Won't bend communication pins |
PCB welding DuPont socket Accuracy is not good Need watch carefully when plug in |
| Key Recognition Area |
 Stationary Easy to identify the keys |
 Need move keys to identify it |
| Light Prompt | Yes(working with godiag gt100) | No |
| Item Name | GODIAG GT100 OBDII Breakout Box | Other OBDII Protocol Detector |
| Picture |  |
 |
| CAN Communication Light |
Can be lit | Can't |
| ECU Modules | Multiple Modules | Single Modules |
| OBD Cable | 2-in-1 extension cable | Can not be used as extension cable |
Package includes:
1pc x Host
1pc xOBD 2-in-1 extension cable
1pc xColored jumper cable
1pc xPower supply 12V
1pc xResistance 120 ohm
6pcs xBanana plug
24pcs xWire accessories, Dupont 2.54mm connector female pins
1pc x CAS4 CAS4+ Test Platorm
