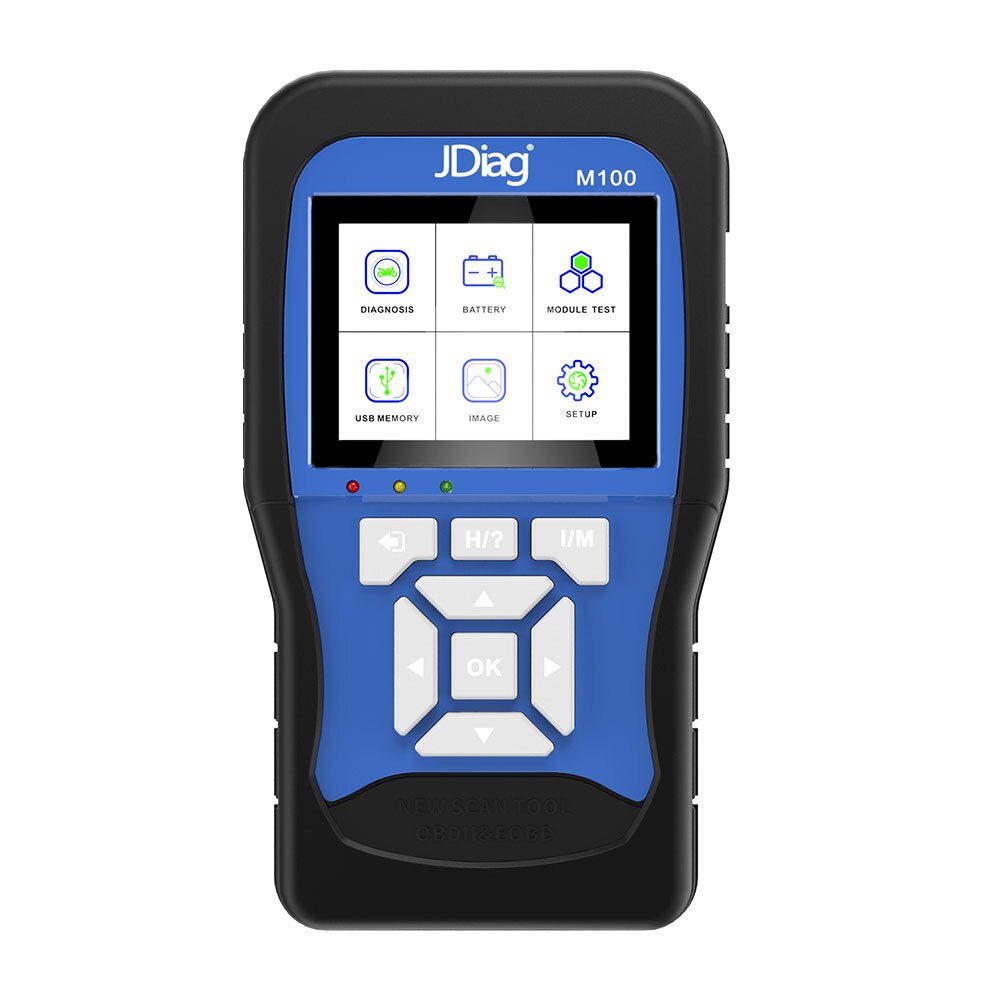

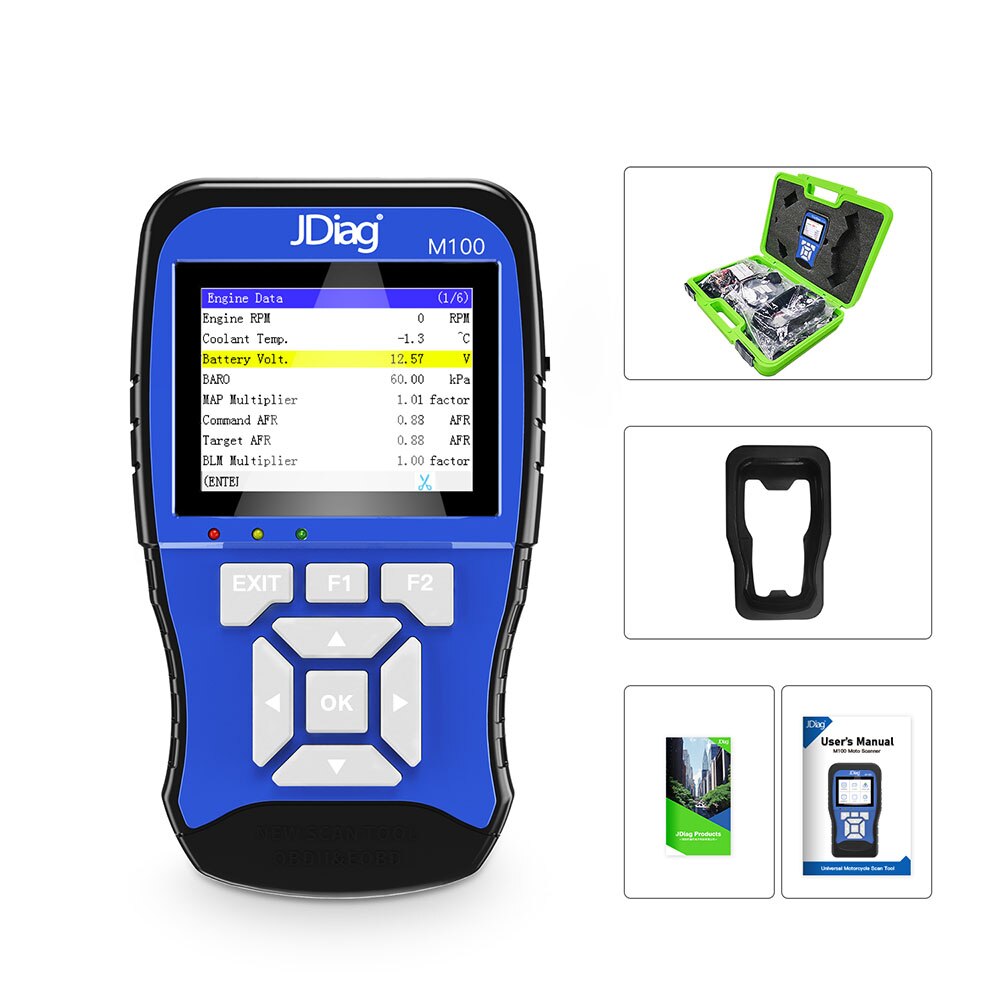

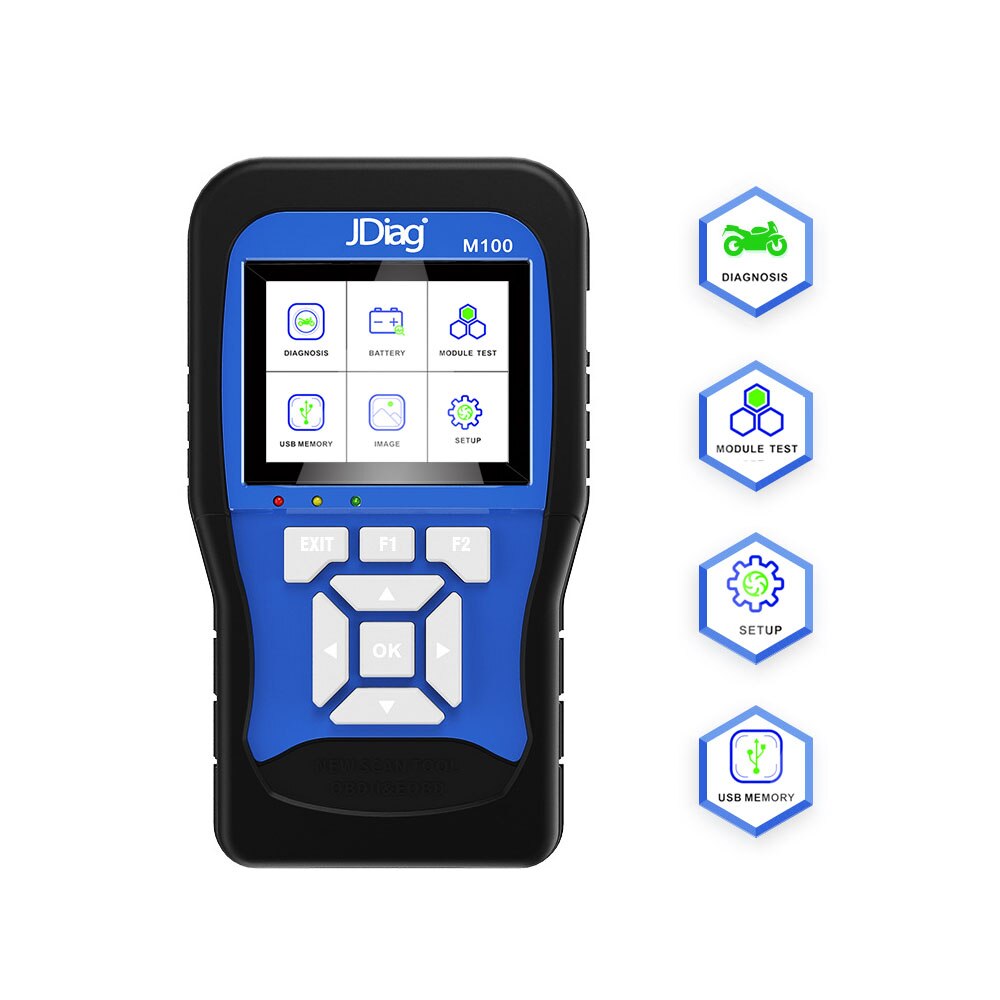

New Arrival JDiag M100 Motorcycle Diagnostic Tool + 12V Battery Tester

New Arrival JDiag M100 Motorcycle Diagnostic Tool + 12V Battery Tester

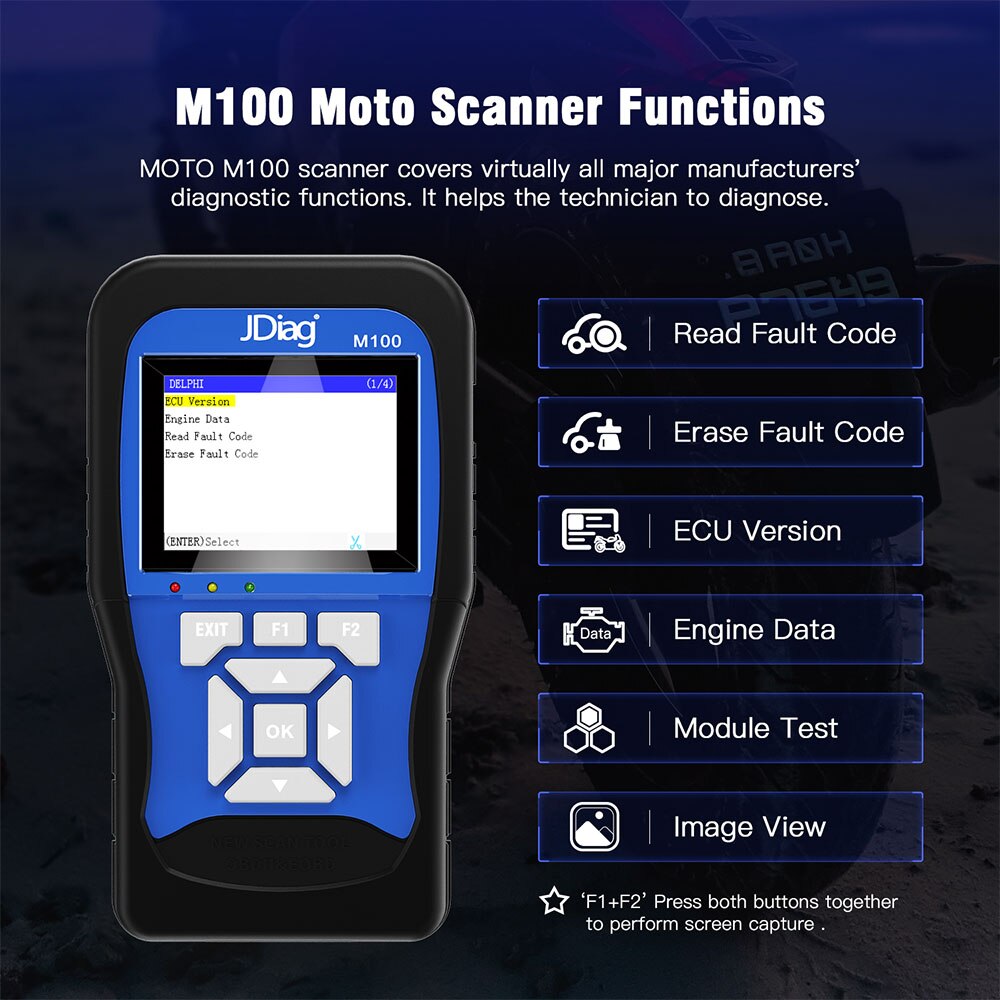

Our M100 Moto Scanner is the new generation Handheld Motorcycle diagnostics device, it holds practically all major producers ' diagnostic plans. It helps the technician to diagnose problems and make adjustments faster; many common methods are written into the tool so the specialist can follow them (injectors, ignition, coils, fuel pump, etc.). It allows the engineer to perform factory service styles such as re-setting the service light, encoding keys, unlocking the immobilizer and configuring the immobilizer/alarm, making injection regulations (COTrimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adaptive parameters, and performing idling organizations. The tool images live data, displays ECU data, shows stored faults(history) or live data (RPM, battery voltage, throttle angle)

The universal scanner supports all OBDII protocols, works on most transports sold in the United States with the 1996 or later model year, EU 2000, and Asian car 2005 or later, including passenger cars, SUVs, light trucks, etc. 3.2-inch full-color screen presents a better viewing experience, it is not just a car engine light scanner, you can also know the radiation status by using the red, yellow and red LEDs. green. Access to transmit readiness status displays lives data in both graphic and text form.

Features:

•  The handheld operation, convenient and flexible to use
•  Support for SD cards to store data and upgrades,
• Reserved CAN bus interface
•  3.2-inch color screen, clear display.
• £¬Dynamic data with numerical and waveform.

Specifications:

• Power: DC10-15V
• Operating Current: 250mA
• Storage temperature: -10 C to 85 C
• Operating temperature: 0 C to 70 C
• Humidity: <90%
• Upgrade Ports: USB port
• Communication ports: COM port
