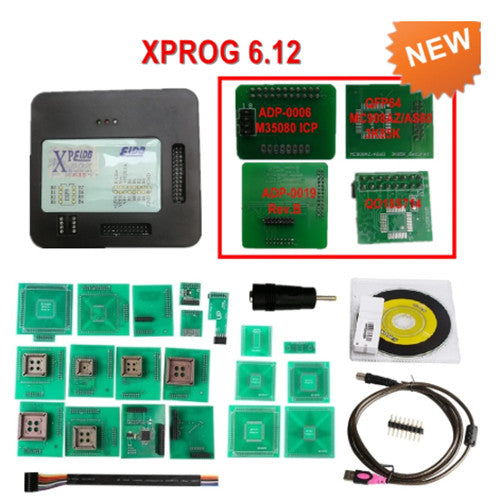

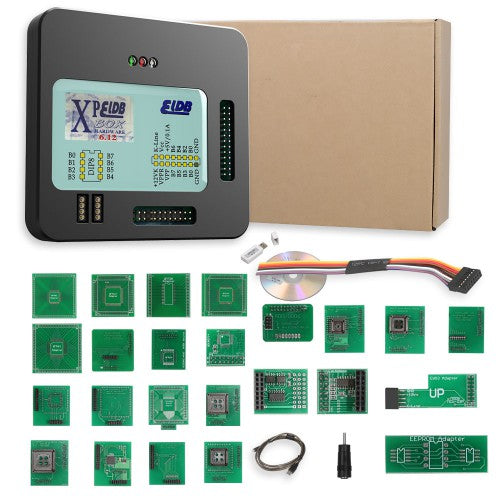

New XPROG-M 6.12 ELDB V6.12 ECU Chip Tuning Tool With USB Dongle and Full Adapters

XPROG-M V6.12 Highlights:

1. New Generation Hardware, runs more steady and faster than old version.
2. Latest software version: V6.12, Firmware V5.4
3. Add new authorization:
AUTH-0028-1 Renesas V850 Authorized and AUTH-0028-2 Renesas SuperH Authorized 2017/10/9
AUTH-0028-3 Renesas RL78Authorized and AUTH-0028-4 Renesas M32C Authorized(New Add)
4. Language: English
5. Operating system: WinXP/Win7/Win8

Difference between this Xprog m V6.12 version and v5.84, v5.74:

Xprog V6.12 Added Aauthorized:
AUTH-0028-3 Renesas RL78 Authorized
AUTH-0028-4 Renesas M32C Authorized

Added 4 Adapters:
ADP-0019 Rev.B ----New!
ADP-0006 M35080 ICP adapter ---New!
QFP64 MC908AZ/AS60 3K85K adapter ---New!
QO18S714 ---New!

It improve the PCB performance



XPROG-M V6.12 Using Tips:
1. XPROG-M V6.12 dongle isn't compatible with older version Xprog.
2. Please close all anti-virus software in your computer, because the anti-virus software will kill Xprog-M V6.12 driver.
3. Disconnect internet. If not, the internet may damage XPROG hardware.
4. Uninstall all the old version XPROG software before you install V6.12 software, because XPROG-M V6.12 hardware is not compatible with other versions of XPROG software.
5. Never try to UPDATE it, the hardware will be damaged if you try to update it online.

Installation Notice:
The windows system requirements are as follows:
1. Windows system should be windows XP 32bit or windows 7 64 bit, all the patch software for the windows system should be installed already and the
windows properly works well...
2. The windows system should be with at least 2 partitions (except the CD ROM.)
3. Can not be working with virtual hard disk.

Xprog M V6.12 Software Installation:
1. Click the file "installation.reg", get the file information to the regedit.
2. The file "AdbeRdr11000_zh_CN.exe" must be installed, otherwise the Xprog software will fail to start.
3. Plug the Xprog main interface to the computer and install the USB driver.
4. Copy the folder "XPROG-BOX6.12" to the desktop, and open it, and run the "xprogdesktop.exe", then open the software.

How to Connect Xprog-M 6.12 ECU Chip Tuning Tool


XPROG-M V6.12 Authorizations:

AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BMW EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view ange mileage, Chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13
AUTH-0027-1 HC(S)908 update Authorized 2016/3/13
AUTH-0027-2 HC(S)908 security Authorized 2016/3/13
AUTH-0028-1 Renesas V850 Authorized 2017/10/9
AUTH-0028-2 Renesas Super H Authorized 2017/10/9

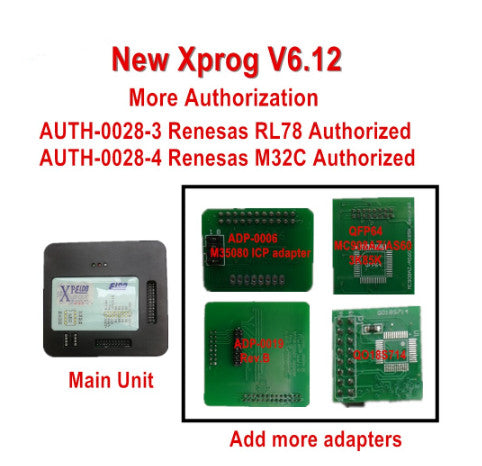

XPROG-M V6.12 Newly Added Authorizations:

AUTH-0028-3 Renesas RL78 Authorized
AUTH-0028-4 Renesas M32C Authorized

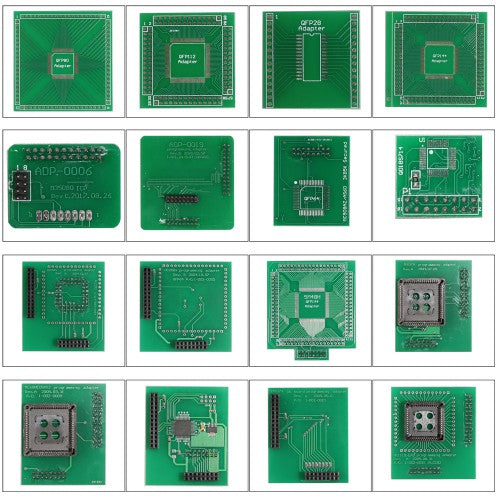

XPROG-M V6.12 Adapters:

ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 Motorola HC05B/X PLCC52 programming adapter
ADP-0005 Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter

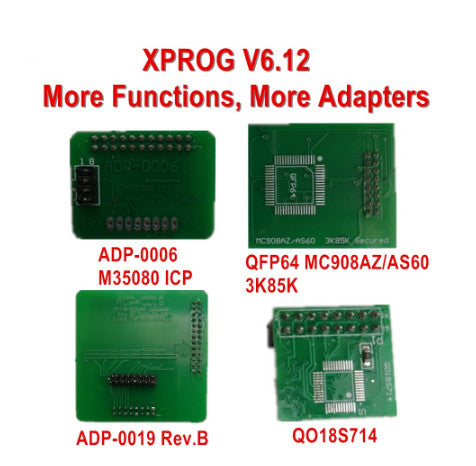

XPROG-M V6.12 Newly Added Adapters:

ADP-0019 Rev.B
ADP-0006 M35080 ICP adapter
QFP64 MC908AZ/AS60 3K85K adapter
QO18S714

Additional Adaptor for 5M48H P-Flash

ADP-0019 Rev.A
EWS3 adaptor
EEPROM adaptor
QFP28 adaptor
QFP64 adaptor
QFP80 adaptor
QFP112 adaptor
QFP144 adaptor

XPROG-M V6.12 added functions(a part) are shown below:
